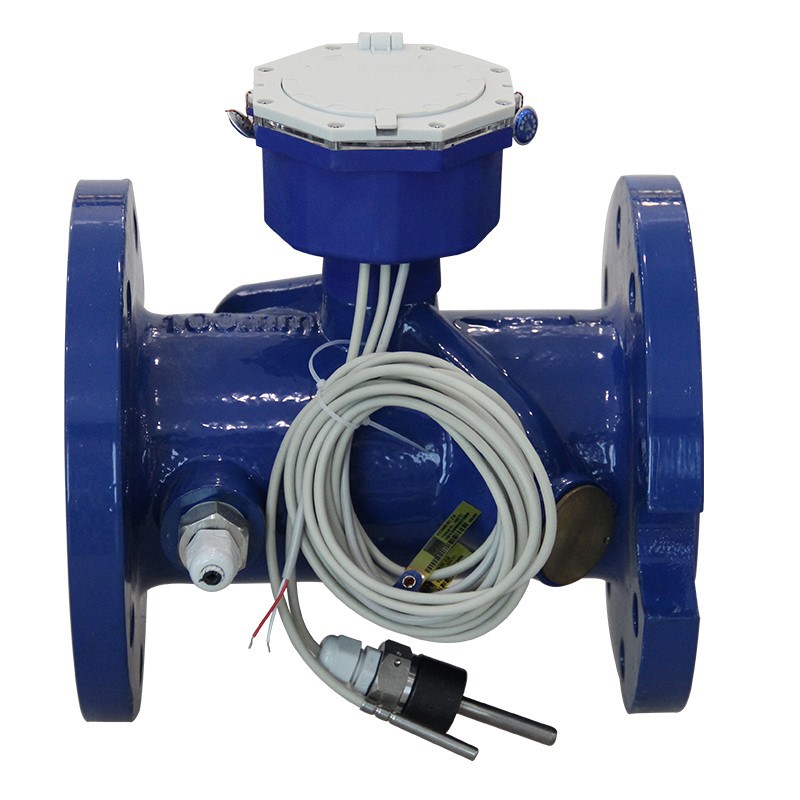

An ultrasonic heat meter includes an ultrasonic transducer assembly and a measuring tube.
Its features include a meter body, with a ball valve and a ball valve motor connected to the control unit mounted on the left end of the meter body;
It includes a sealing ring, a spring, and a spring seat, with the spring seat elastically contacting the ball valve;
A valve seat sealing ring is fitted at the rear of the ball valve; a bracket is installed inside the meter body, with the measuring tube mounted in the middle of the bracket;
Reflectors are mounted at both ends of the bracket; a meter housing base is fastened to the meter body, with ultrasonic transducer assemblies mounted on the left and right sides of the fastening area, respectively.
A housing base is mounted on the housing base, with a housing cover fitted on the housing base, and a heat meter probe is installed inside the housing cover;
An integrator and a control circuit board are included, with an M-bus data collector and an M-bus data collector bus communication interface mounted on the control circuit board.
